The Makino A66E Horizontal Machining Center is a high-performance production machine designed for precision machining and high-volume manufacturing. Known for its exceptional rigidity, accuracy, and reliability, the A66E is widely used in automotive, aerospace, and heavy industrial machining environments.
This machine features the Professional 3 CNC Control, a high-precision full 4th axis pallet system, and a 14,000 RPM high-speed spindle, making it ideal for complex multi-face machining operations with excellent productivity and repeatability.
Manufacturer: Makino
Model: A66E
Machine Type: Horizontal Machining Center (HMC)
Serial Number: 132
Control: Professional 3 CNC Control
Country of Manufacture: Japan
Pallet Size: 19.7" × 19.7" (0.500 m × 0.500 m)
Maximum Pallet Load: 1,540 lbs (698 kg)
X-Axis Travel: 28.7" (0.729 m)
Y-Axis Travel: 28.7" (0.729 m)
Z-Axis Travel: 31.5" (0.800 m)
The A66E offers a balanced work envelope allowing efficient machining of medium to large components with excellent precision and stability.
Pallet Rotation Resolution: 0.001°
Full 4th Axis Capability
The precision pallet indexing system enables accurate multi-side machining without removing the workpiece, increasing machining efficiency and reducing setup times.
Maximum Spindle Speed: 14,000 RPM
The high-speed spindle allows efficient cutting of aluminum, steel, and alloy materials while maintaining tight tolerances and superior surface finish.
Control Type: Professional 3 CNC Control
The Professional 3 control system provides advanced machining capabilities, fast processing speed, and reliable CNC operation suitable for complex machining tasks.
✔ Professional 3 CNC Control
✔ Full 4th Axis Pallet Rotation
✔ Precision 19.7" × 19.7" Pallet System
✔ 1,540 lb Maximum Pallet Load Capacity
✔ High-Speed 14,000 RPM Spindle
✔ Horizontal Machining Configuration
The Makino A66E Horizontal Machining Center is engineered for precision, reliability, and high-volume production machining. Its rigid structure, accurate pallet indexing system, and high-speed spindle make it a preferred machine in industries requiring consistent precision and productivity.
Ideal applications include:
✔ Automotive component machining
✔ Aerospace precision parts manufacturing
✔ Heavy industrial machining
✔ Multi-face machining operations
✔ High-volume production environments
Makino machines are globally recognized for their durability, accuracy, and machining performance, making the A66E a powerful asset for any modern manufacturing facility.

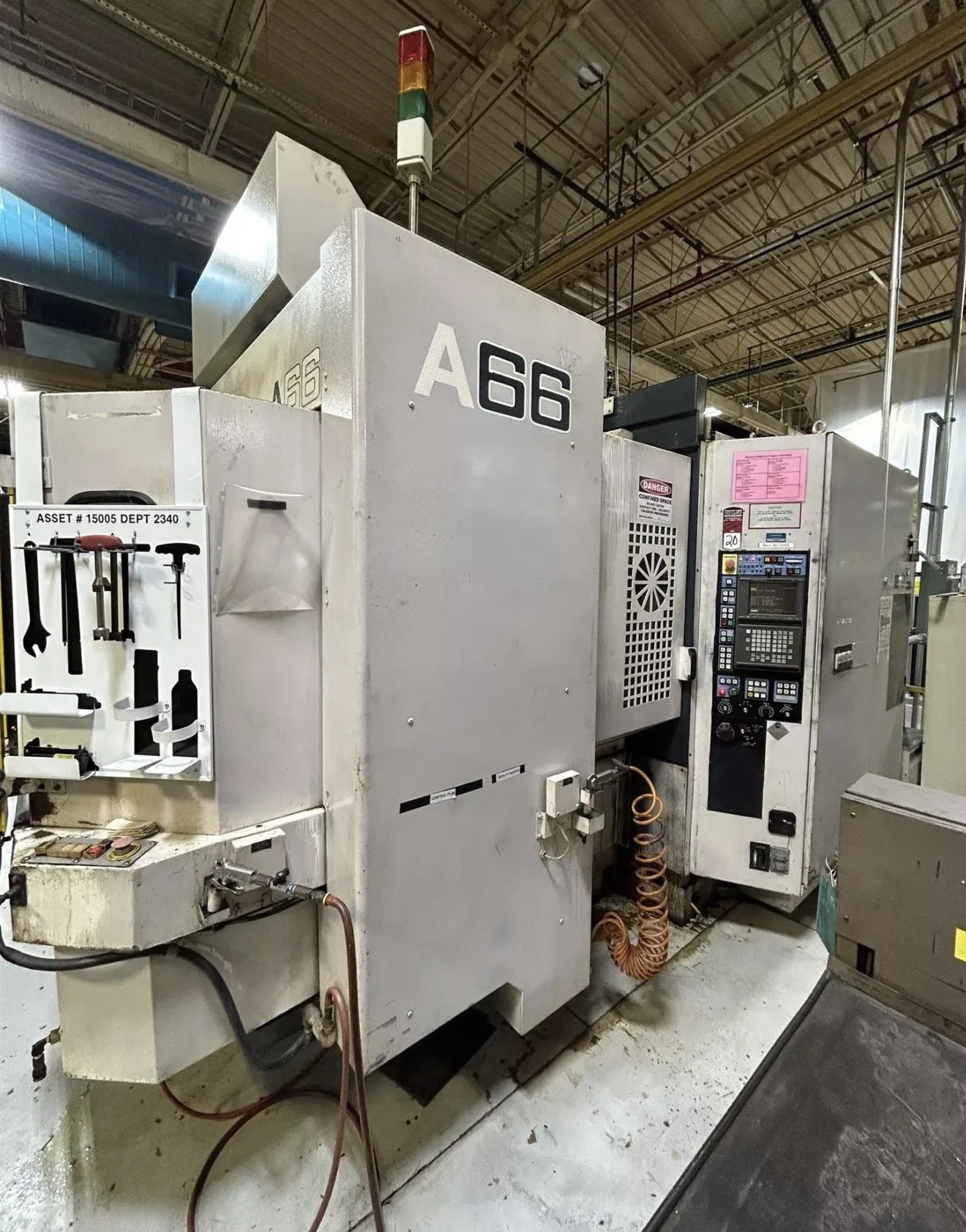

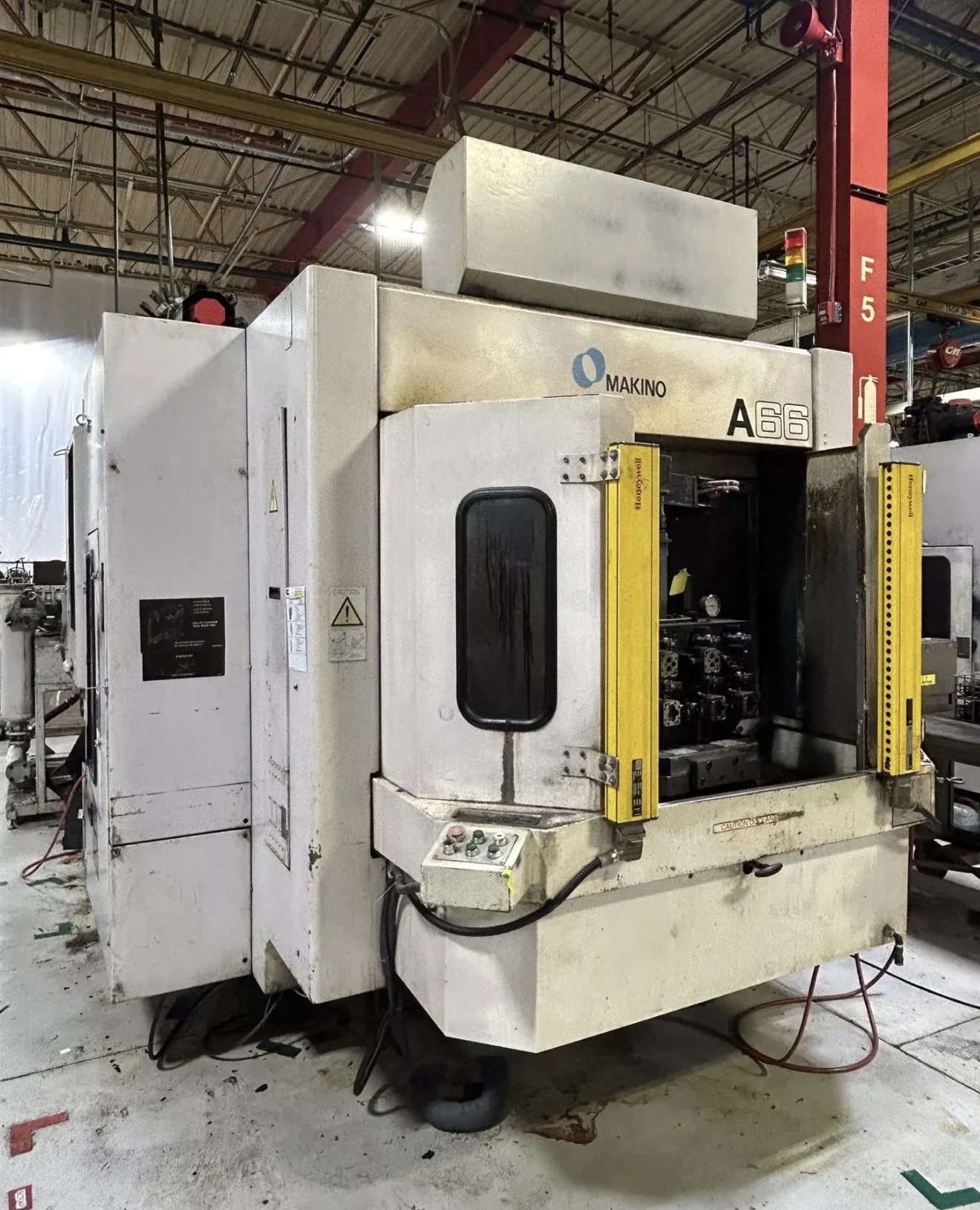

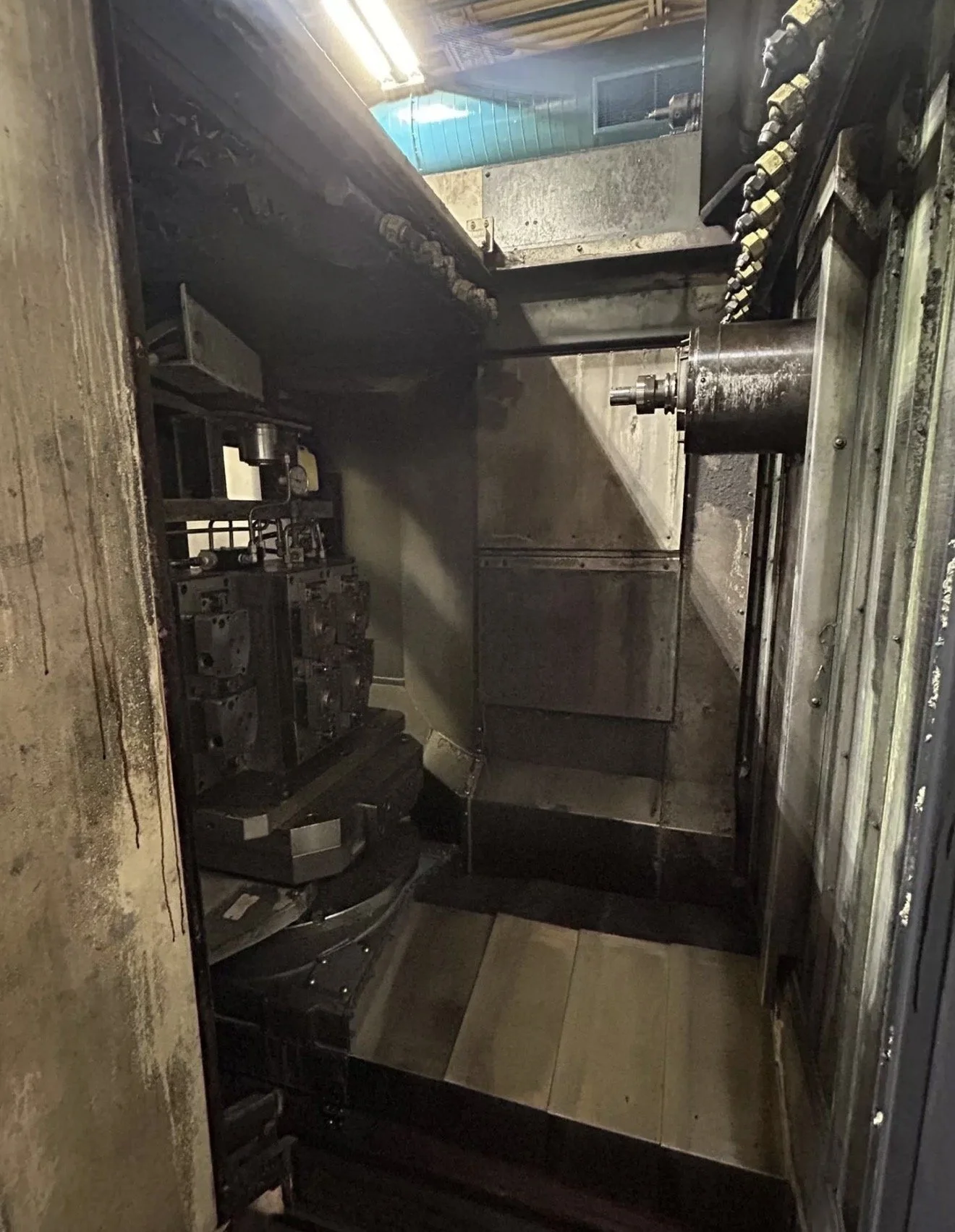

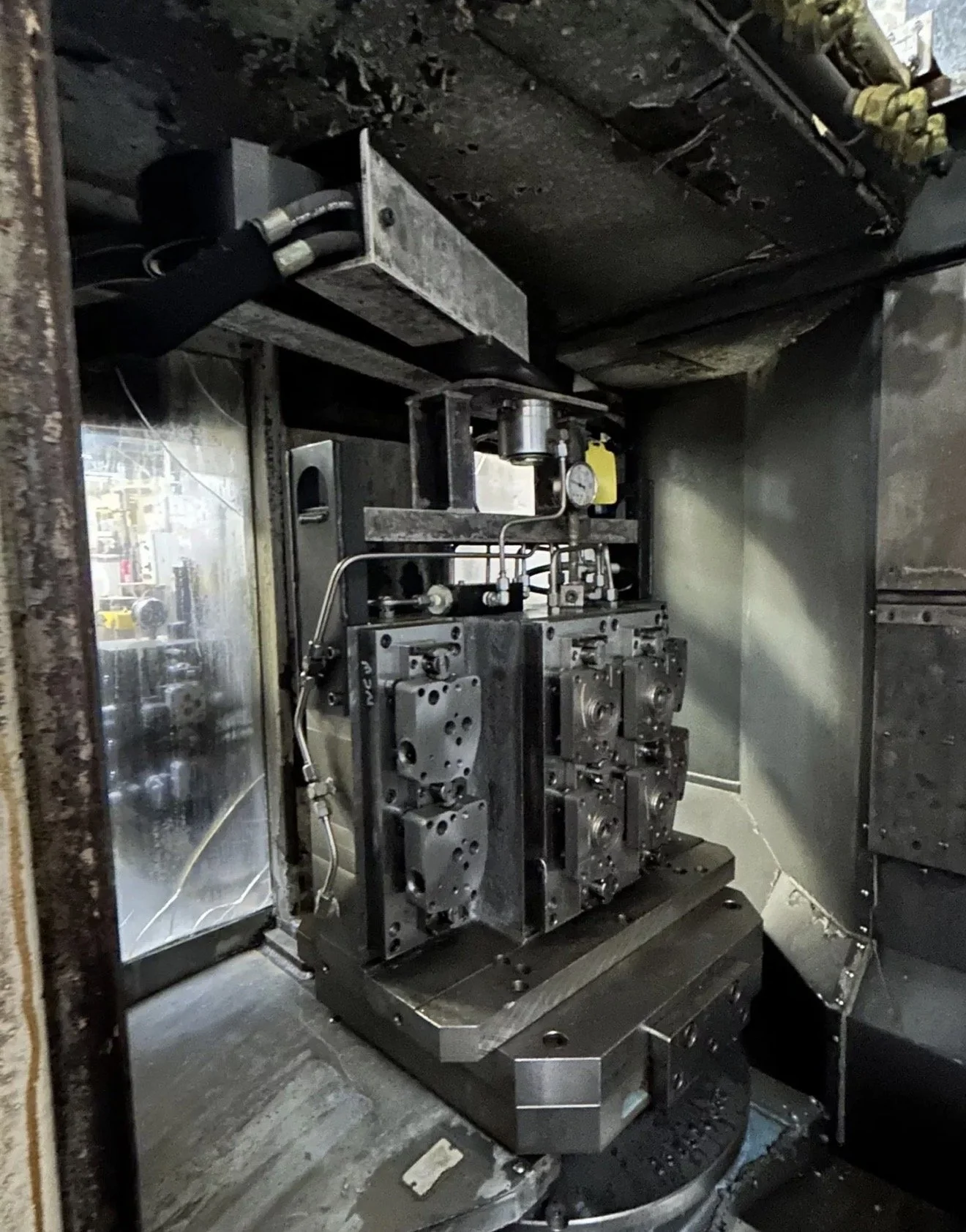

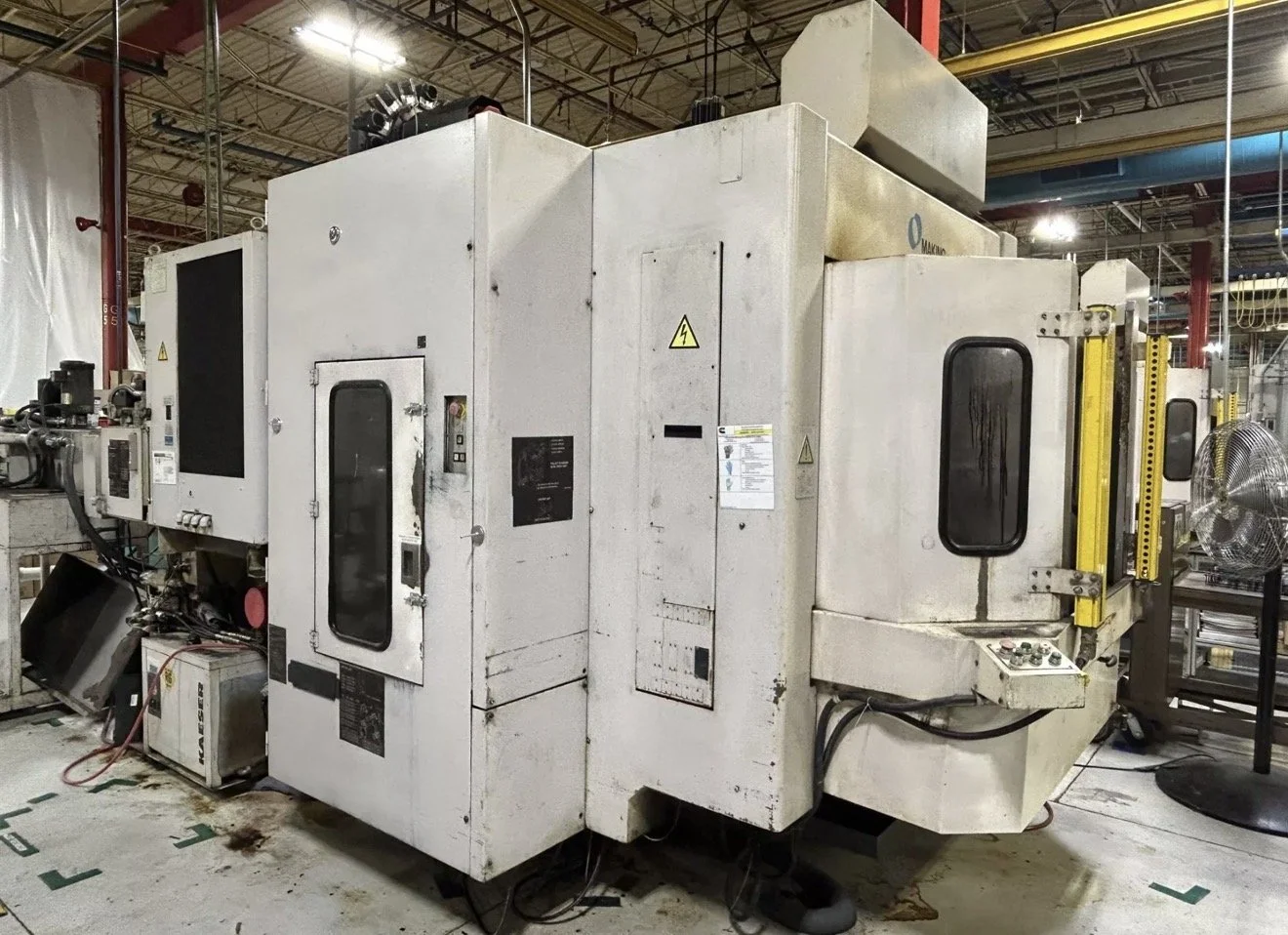

The Makino A66 Horizontal Machining Center is a high-precision production machine engineered for demanding machining environments. Known for its exceptional rigidity, thermal stability, and high-speed capability, the A66 is ideal for precision component manufacturing, automotive parts, aerospace components, and high-volume industrial production.
This machine is equipped with the Professional 3 Control, a full 4th-axis pallet rotation, and a high-speed 14,000 RPM spindle, delivering excellent accuracy and productivity for complex machining operations.
Manufacturer: Makino
Model: A66
Machine Type: Horizontal Machining Center (HMC)

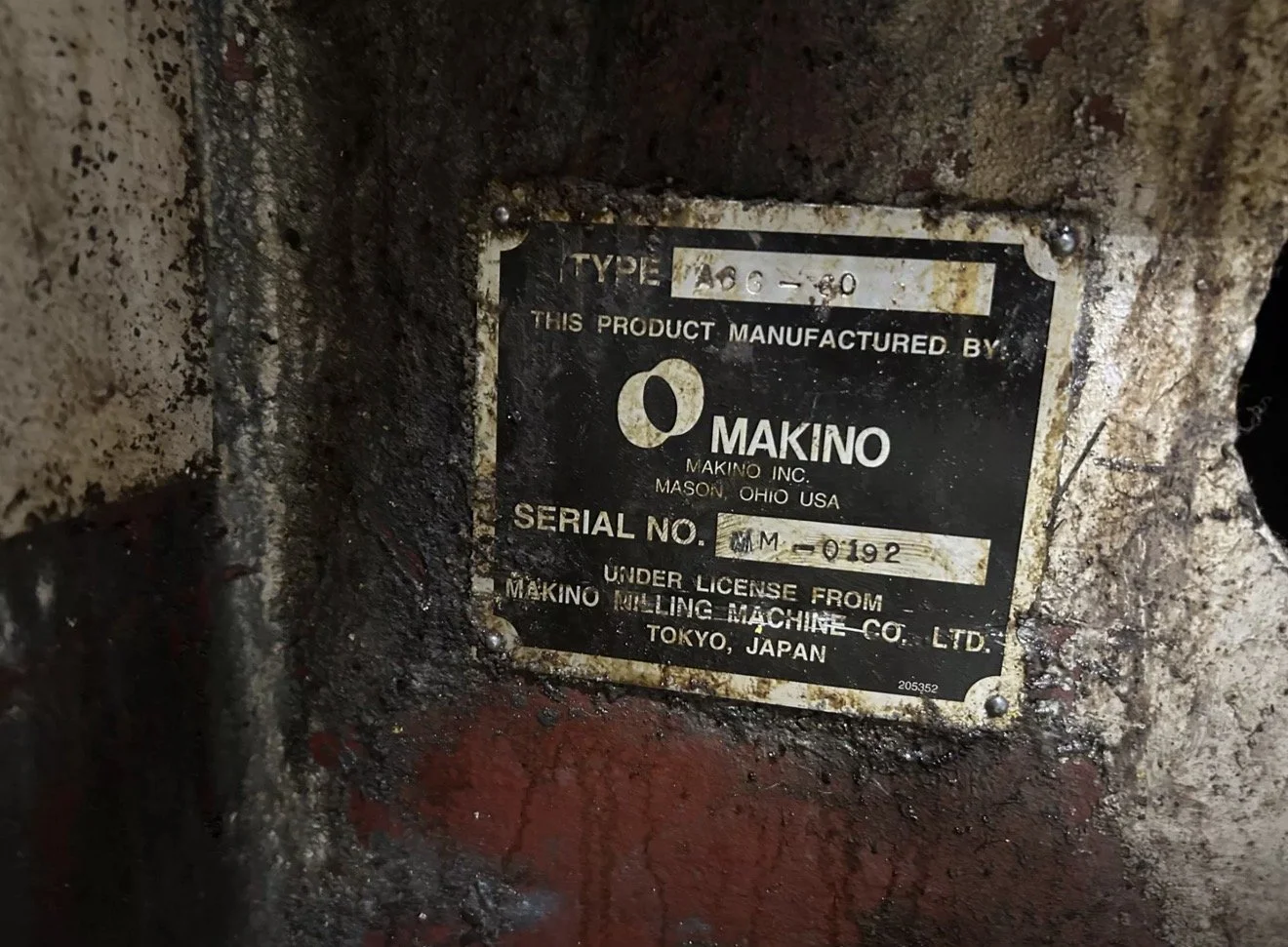

Serial Number: MM-0192
Control: Professional 3 CNC Control
Country of Manufacture: Japan
Pallet Size: 19.7" × 19.7" (0.500 m × 0.500 m)
X-Axis Travel: 31.5" (0.800 m)
Y-Axis Travel: 27.6" (0.701 m)
Z-Axis Travel: 25.2" (0.640 m)
The generous travel capacities allow machining of medium to large precision components with excellent stability and repeatability.
Pallet Rotating Resolution: 0.001°
Full 4th Axis Capability
The precision pallet indexing system enables multi-side machining without repositioning the workpiece, significantly improving production efficiency and accuracy.

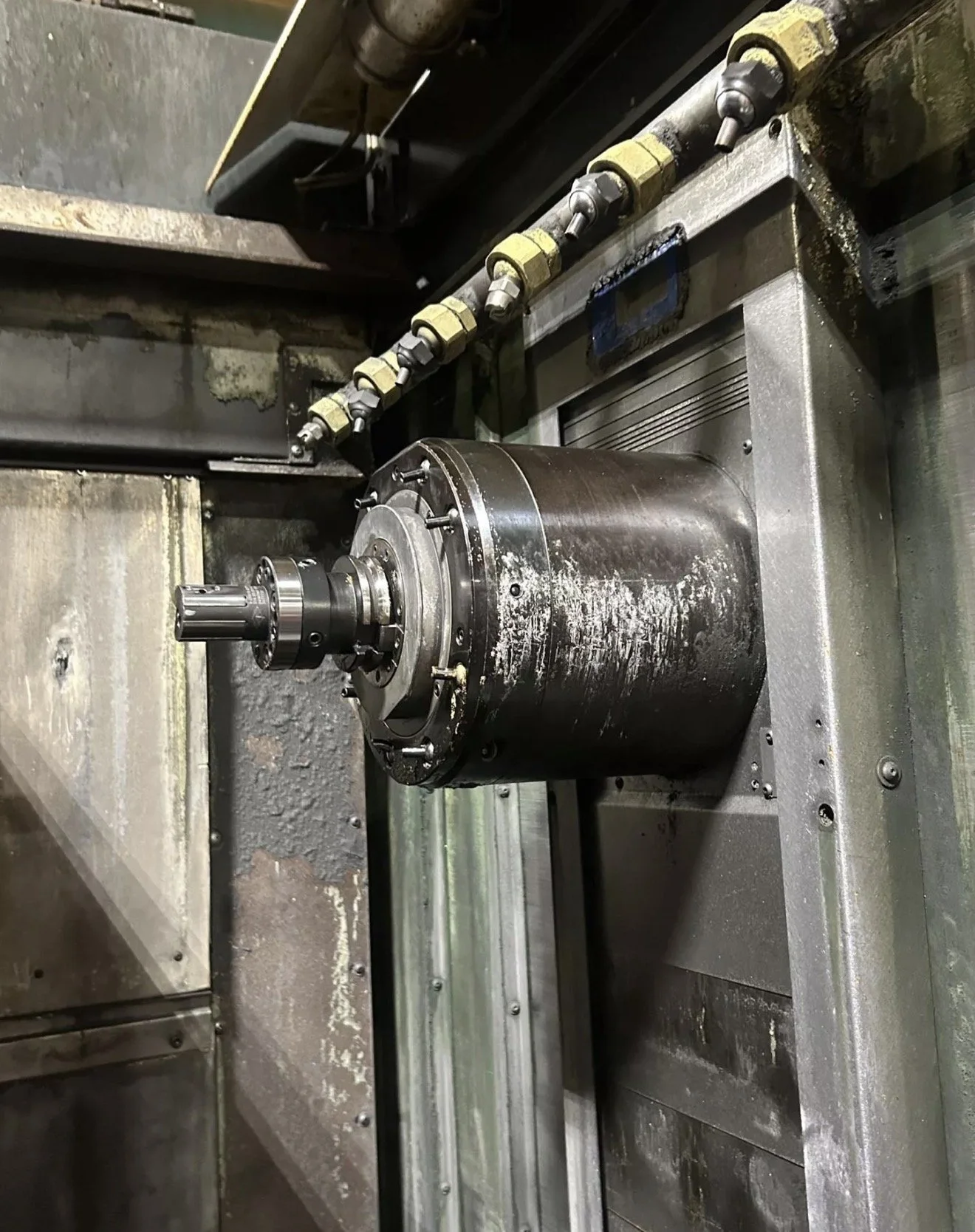

Maximum Spindle Speed: 14,000 RPM
The high-speed spindle allows for efficient machining of aluminum, steel, and other industrial materials while maintaining excellent surface finishes and tight tolerances.
Control Type: Professional 3 CNC Control
Makino’s advanced CNC system provides reliable machine control, high processing speed, and user-friendly programming for complex machining operations.
✔ Professional 3 CNC Control
✔ Full 4th Axis Pallet Rotation
✔ Precision Pallet System (19.7" × 19.7")
✔ High-Speed 14,000 RPM Spindle
✔ Horizontal Machining Configuration
The Makino A66 Horizontal Machining Center is designed for high-precision and high-productivity machining in demanding industrial environments. Its rigid construction, high-speed spindle, and precise pallet indexing system make it an excellent choice for manufacturers requiring reliable multi-axis machining capability.
Ideal applications include:
✔ Automotive component manufacturing
✔ Aerospace machining
✔ Precision mold and die work
✔ High-volume production machining
✔ Complex multi-face machining operations
This machine delivers the reliability and machining performance that Makino machines are known for worldwide.
We are offering a Heyligenstaedt & Comp. 210 Engine Lathe, a heavy-duty German-built manual lathe designed for large shaft machining, long workpieces, and industrial applications requiring rigidity and precision.
Manufactured in 1982, this machine is built with robust cast iron construction and engineered for long-term durability in demanding shop environments.
MACHINE SPECIFICATIONS
Manufacturer: Heyligenstaedt & Comp. G.m.b.H.
Type: 210
Year: 1982
Machine Type: Heavy-Duty Engine Lathe
Country of Manufacture: Germany
CAPACITY & WORK AREA
Swing Over Bed: 28.3" (0.719 m)
Swing Over Cross Slide: 18.7" (0.475 m)
Distance Between Centers: 180" (4.572 m)
This extended bed configuration makes the machine ideal for long shafts, rollers, and heavy industrial components.
CHUCK & WORKHOLDING
Chuck Size: 18" (0.457 m)
Steady Rest Capacity:
• Maximum: 8" (0.203 m)
• Minimum: 3.5" (0.089 m)
The steady rest allows stable support of long and slender workpieces, ensuring precision and vibration control during machining.
PERFORMANCE & CONSTRUCTION
Machine Design: Heavy cast iron bed and base
Spindle Construction: High-rigidity industrial spindle
Application: Manual precision turning
Designed for reliability and consistent performance in heavy machining operations.
MACHINE IS EQUIPPED WITH
✔ 18" Chuck
✔ Steady Rest (3.5" – 8")
✔ Extended 180" Between Centers Bed
✔ Heavy-Duty Cast Construction
✔ Full Industrial Controls
MACHINE OVERVIEW
The Heyligenstaedt 210 is a powerful, long-bed engine lathe engineered for:
✔ Large shaft machining
✔ Roller and cylinder turning
✔ Repair and rebuild applications
✔ Industrial maintenance shops
✔ Custom fabrication work
German-built precision combined with heavy-duty construction makes this machine an excellent choice for shops requiring stability, strength, and long workpiece capability.
This machine is available for inspection and immediate sale.

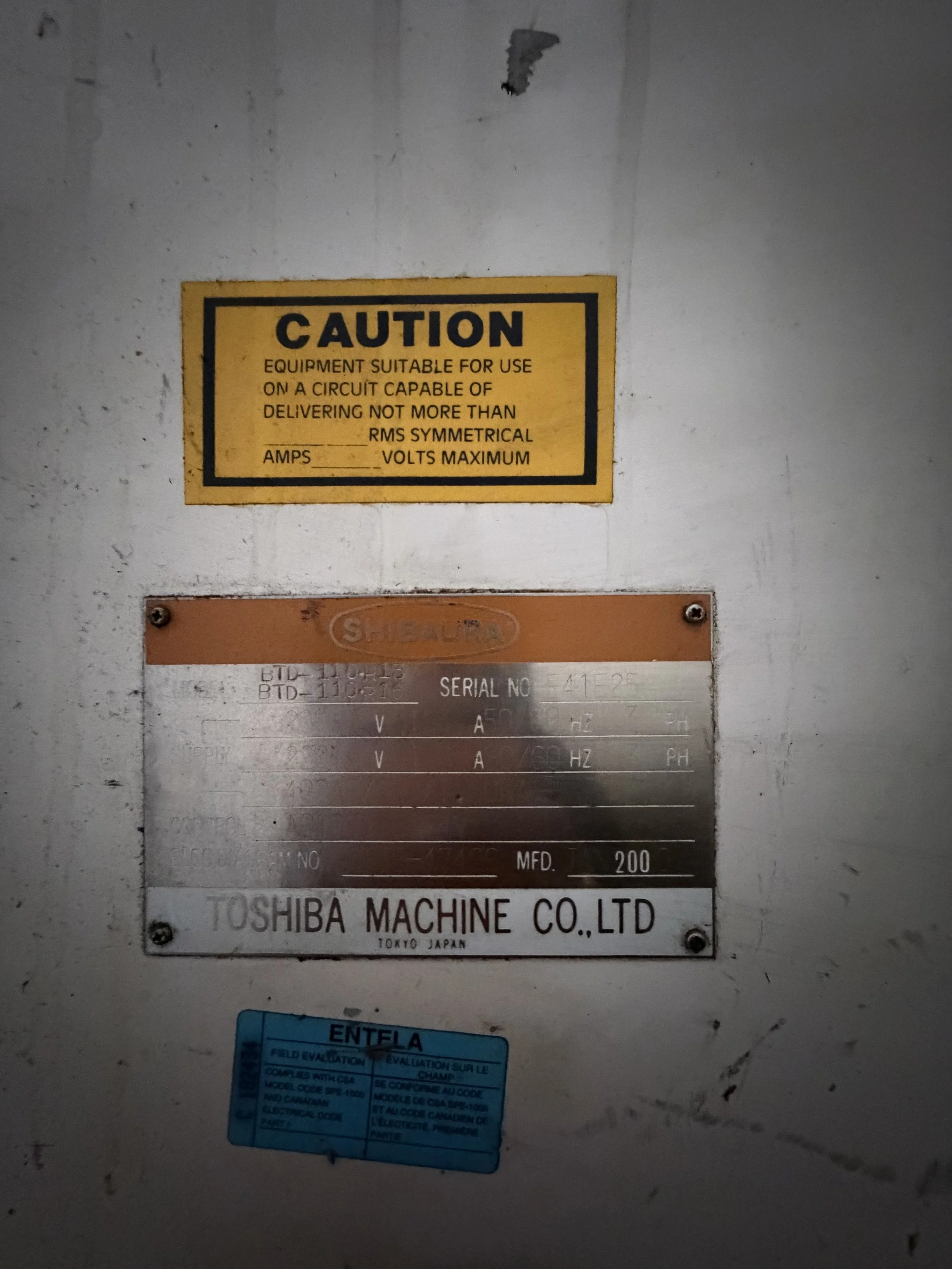

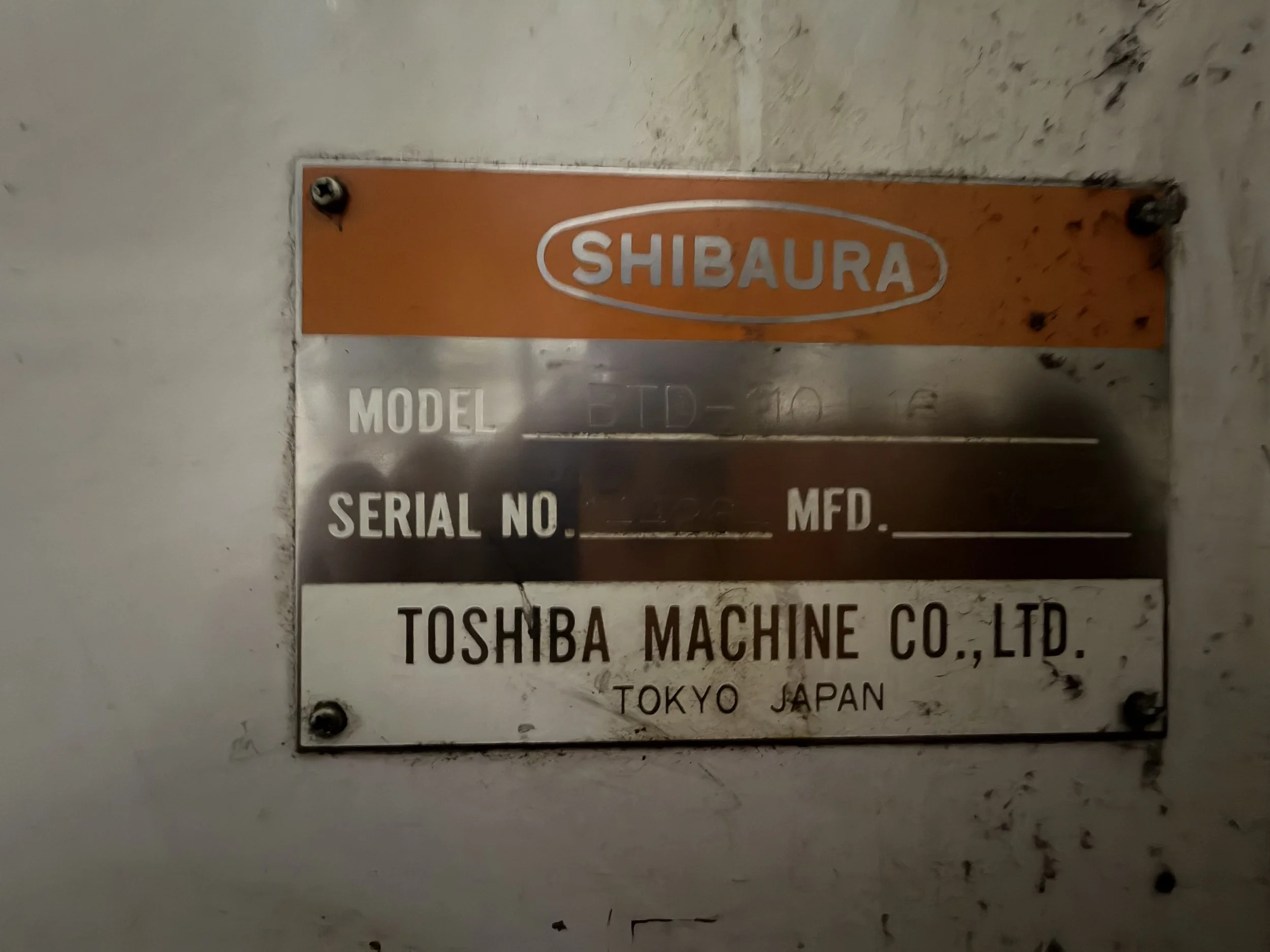

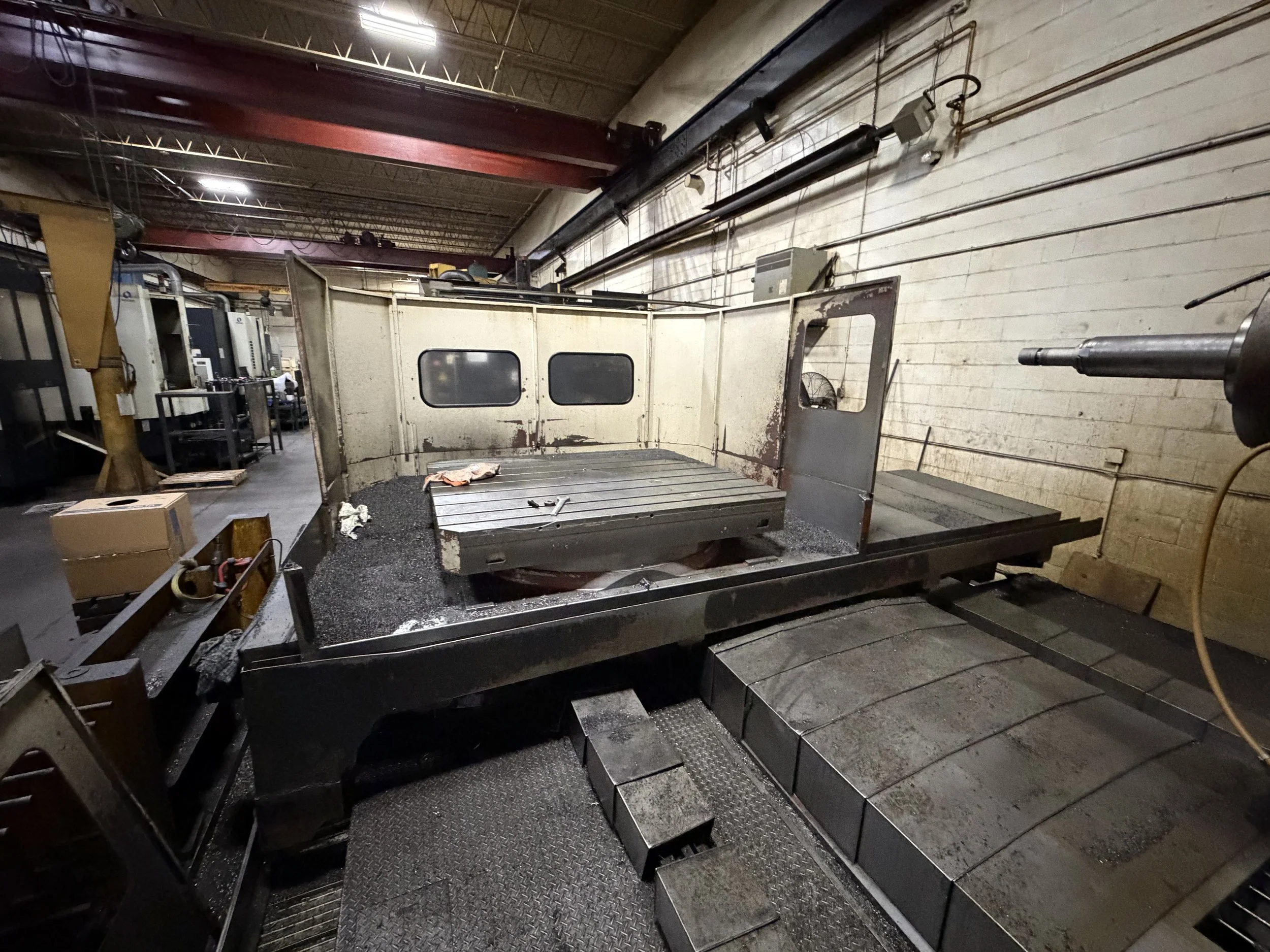

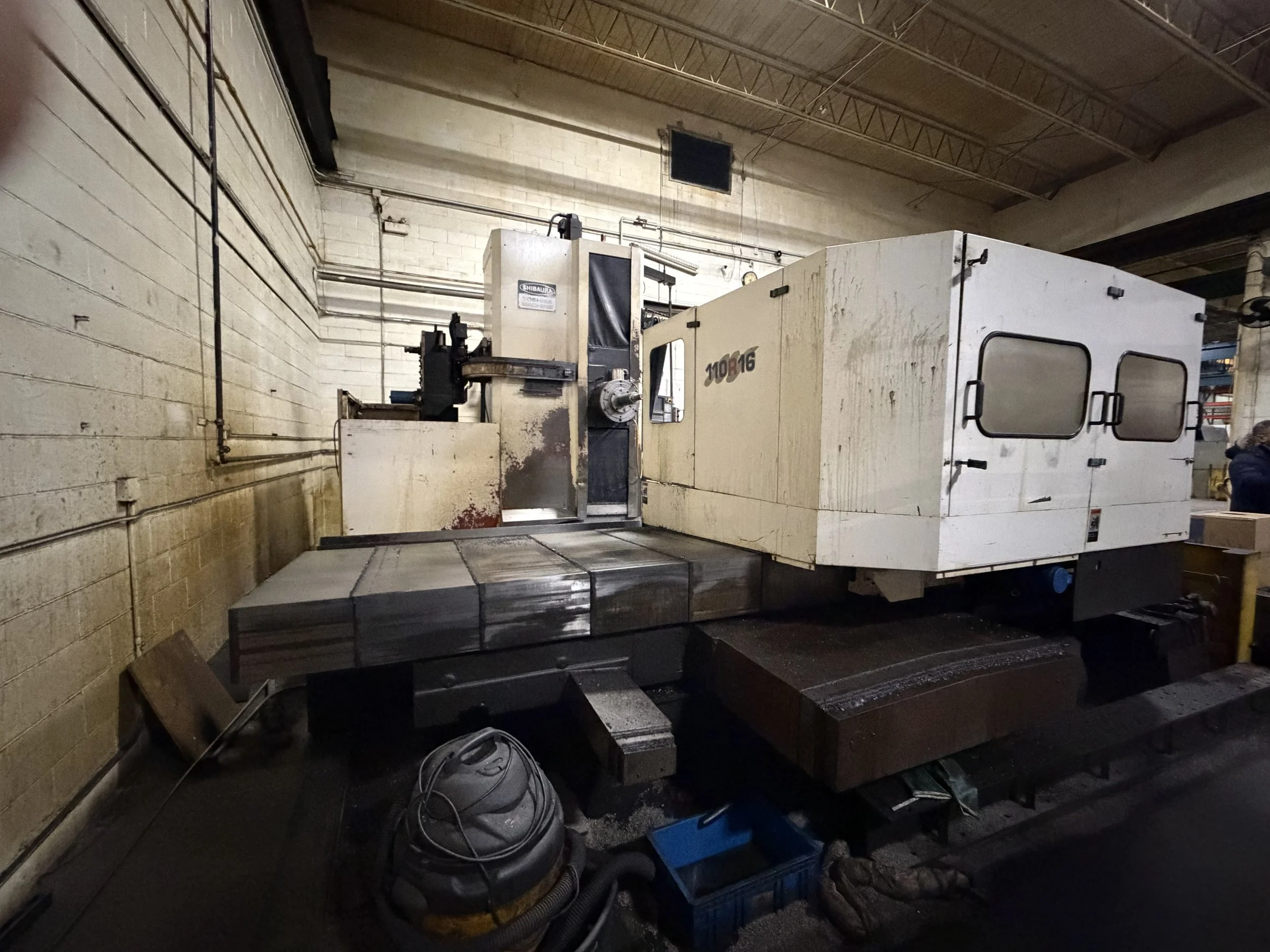

FOR SALE: TOSHIBA BTD-110.R16 CNC HORIZONTAL BORING MILL (2000) – HEAVY-DUTY PRECISION TABLE TYPE BORING MACHINE

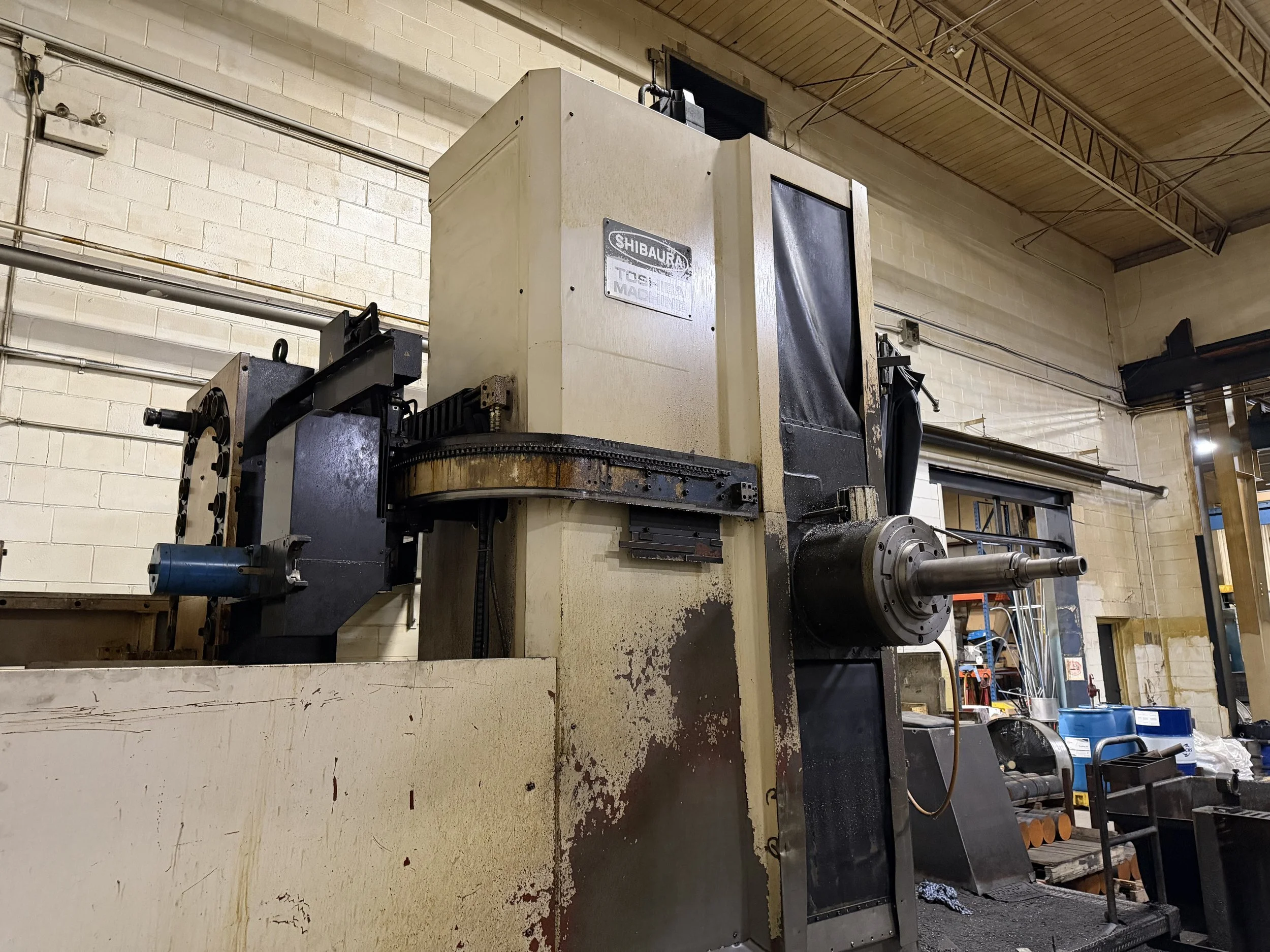

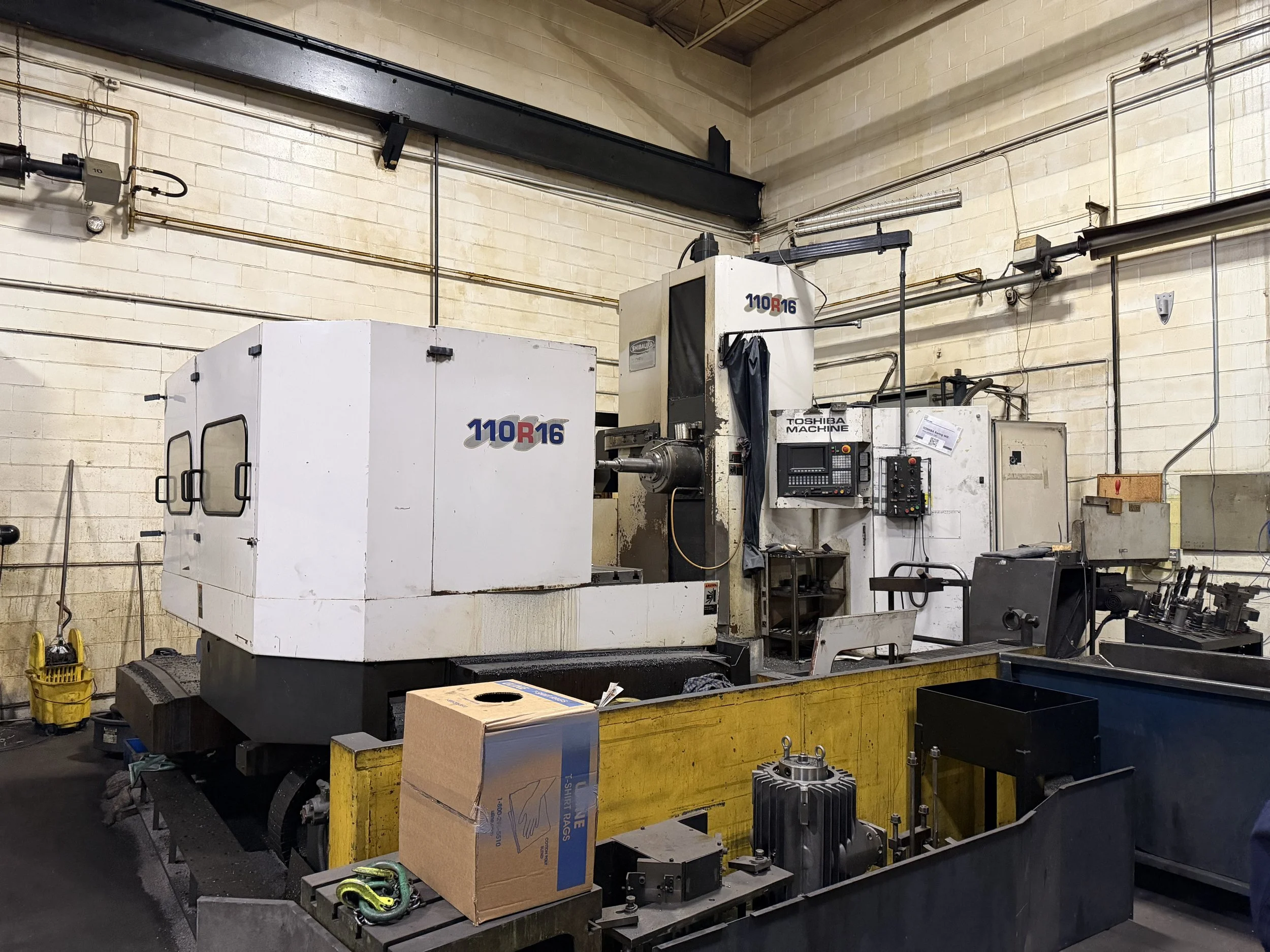

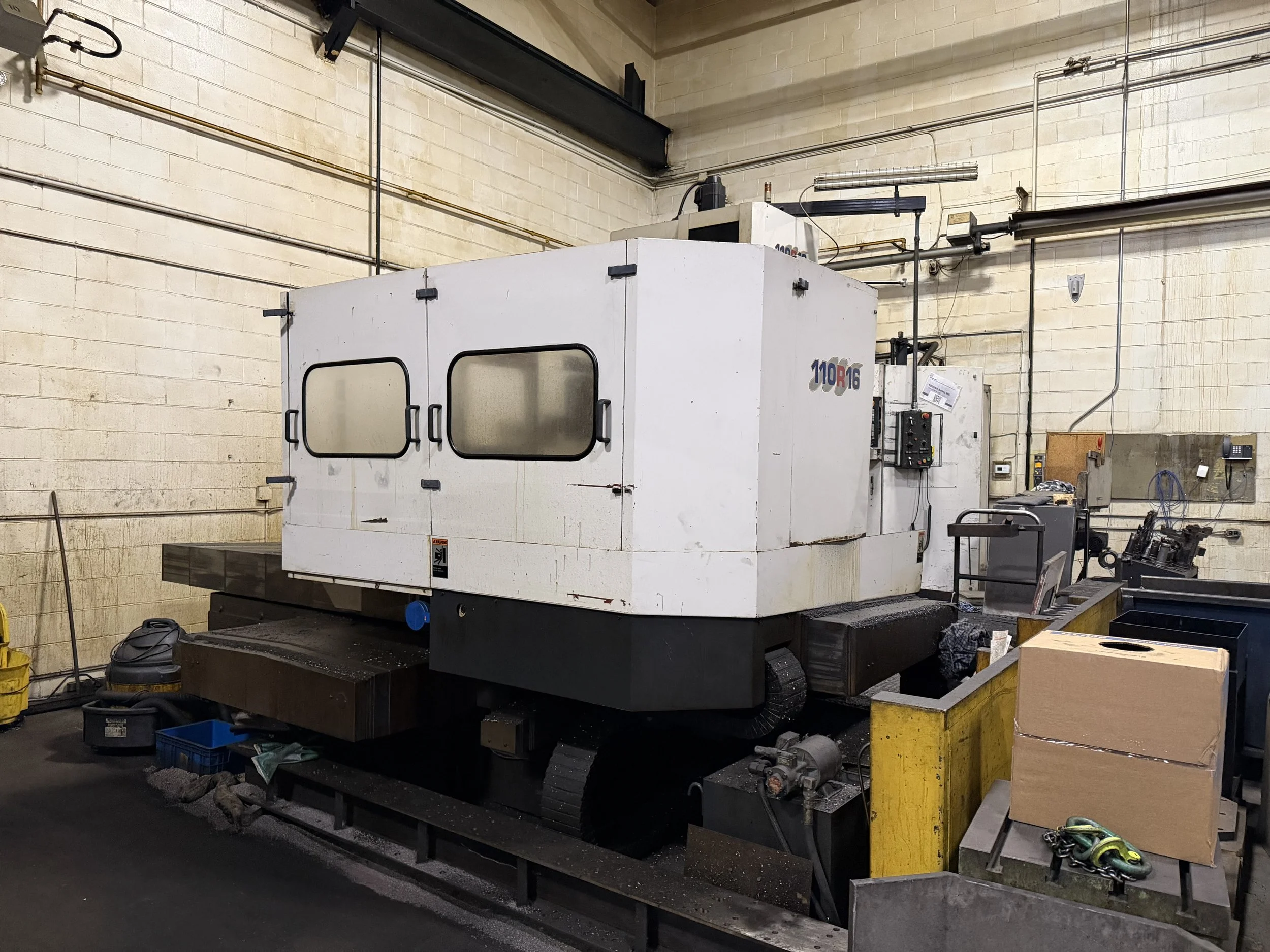

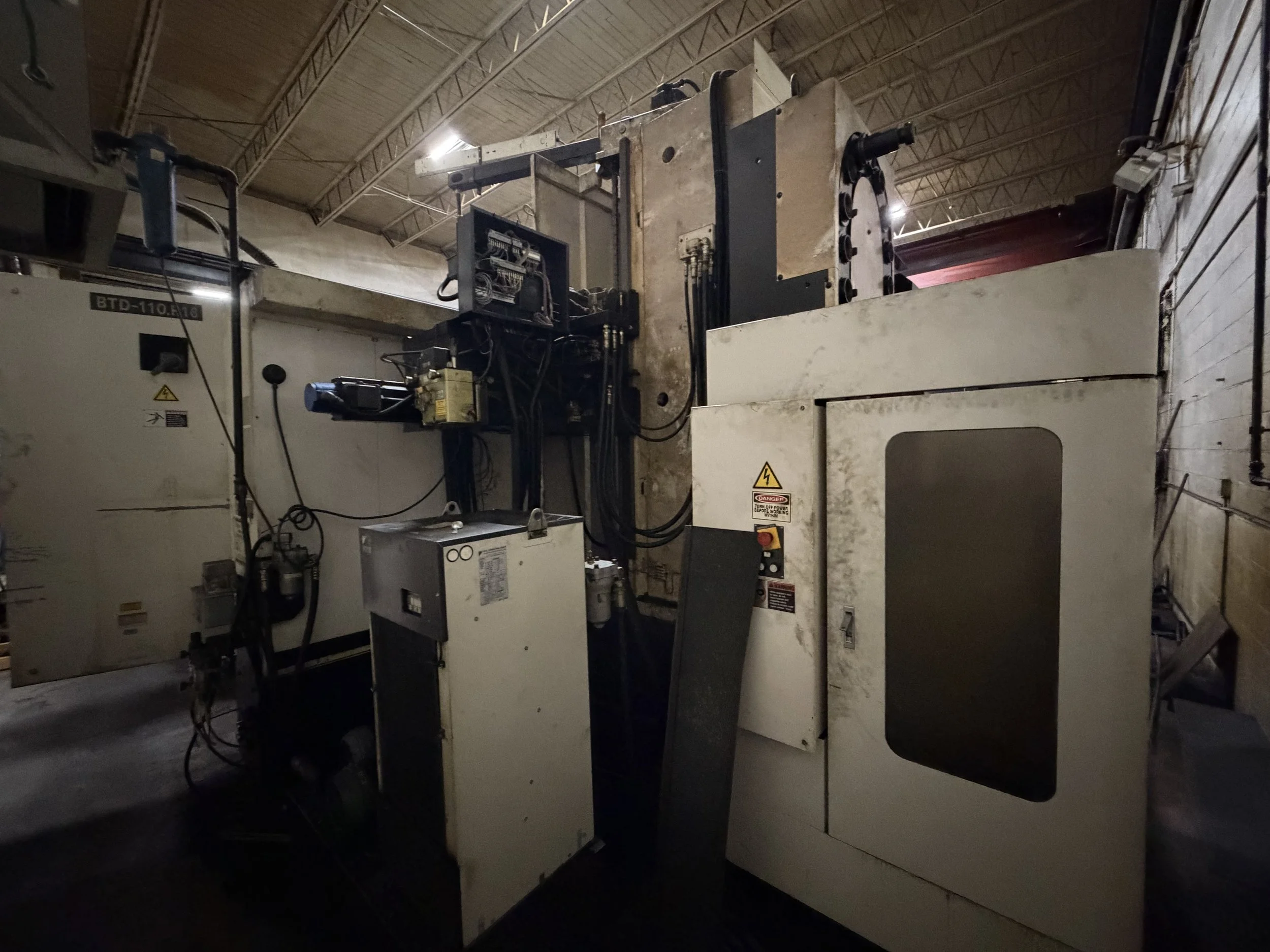

We are offering a 2000 Toshiba BTD-110.R16 Horizontal CNC Boring Mill, a robust and high-precision table-type boring machine engineered for large-part machining, heavy cutting applications, and demanding industrial environments.
Manufactured in Japan and equipped with the advanced TOSNUC 888 CNC Control, B-axis rotary table, 38-tool ATC, and integrated quill spindle assembly, this machine is ideal for energy, oil & gas, heavy equipment, mold & die, and large fabrication industries.
Condition: Needs Work
Location: Canada
MACHINE SPECIFICATIONS
Manufacturer: Toshiba
Model: BTD-110.R16
Year: 2000
Machine Type: Horizontal Table Type CNC Boring Mill
Control: TOSNUC 888 CNC Control
Country of Manufacture: Japan
TRAVELS & AXES
X-Axis Travel: 2,000 mm (2.000 m)
Y-Axis Travel: 1,500.1 mm (1.500 m)
Z-Axis Travel: 1,450.1 mm (1.450 m)
W-Axis (Quill Travel): 549.91 mm (0.550 m)
B-Axis: 360° Rotary Table
The 4-axis configuration with full B-axis rotary table allows multi-face machining in a single setup, significantly improving accuracy and productivity.
TABLE CAPACITY
Table Width: 1,501.6 mm (1.502 m)
Table Length: 1,599.9 mm (1.600 m)
Maximum Table Load: 13,889 lbs (6,300 kg approx.)
Heavy-duty table design supports large and heavy workpieces with excellent rigidity.
SPINDLE & PERFORMANCE
Spindle Diameter: 109.98 mm
Spindle Taper: 7/24 No. 50 (BT-50)
Spindle Speed: 3,000 RPM
Spindle Motor Power: 14.9 kW
The integrated quill spindle assembly delivers strong torque for heavy roughing while maintaining precision for finishing operations.
TOOL CHANGER
Automatic Tool Changer: 38 ATC
Tooling Type: BT-50
Included Tooling: Assorted BT-50 Tooling
Designed for reduced setup times and efficient multi-tool operations.
RAPID TRAVERSE RATES
Rapid Traverse (X/Y/Z): 393 in/min (approx. 10 m/min)
Rapid Traverse (W): 196 in/min (approx. 5 m/min)
Ensures efficient positioning and reduced non-cutting time.
ACCURACY
Positioning Accuracy: 0.0152 mm
Repeatability: 0.0076 mm
Delivers high-precision performance suitable for tight-tolerance applications.
ELECTRICAL & CONTROL

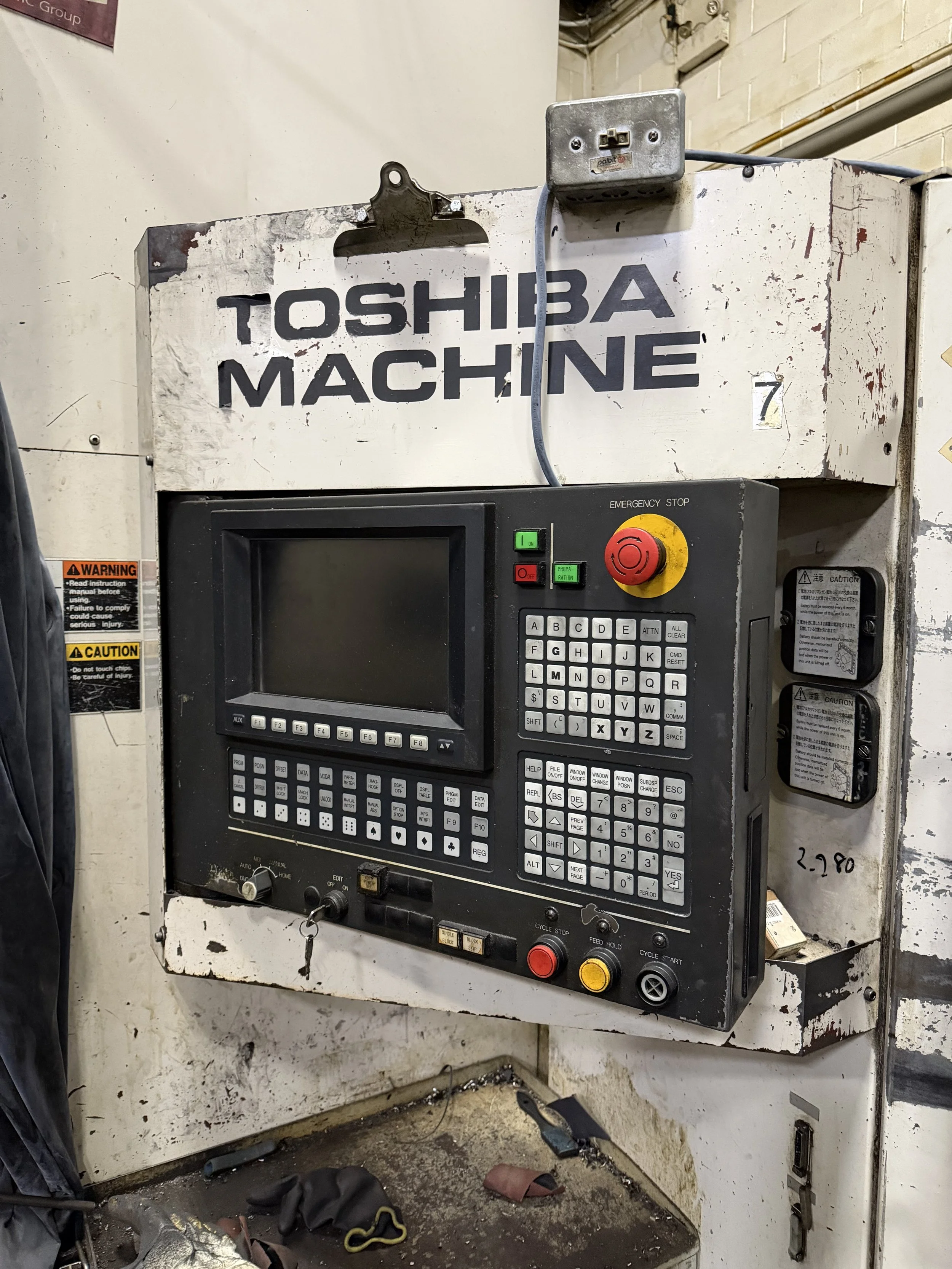

Control System: TOSNUC 888 CNC
Servo System: Toshiba/Shibaura Servo Amplifier Rack
Axis Servo Drives: Toshiba Axis Servo Drives
Spindle Monitoring: Spindle Load Meter
Toshiba’s proprietary control system is known for stability, durability, and long-term industrial reliability.
MACHINE DIMENSIONS & WEIGHT
Overall Dimensions:
236.22" x 200.79" x 153.54"
(6.000 m x 5.100 m x 3.900 m approx.)
Machine Weight: 121,000 lbs (54,885 kg approx.)
Heavy cast construction provides exceptional rigidity and vibration dampening.
MACHINE IS EQUIPPED WITH
✔ B-Axis 360° Rotary Table
✔ TOSNUC 888 CNC Control

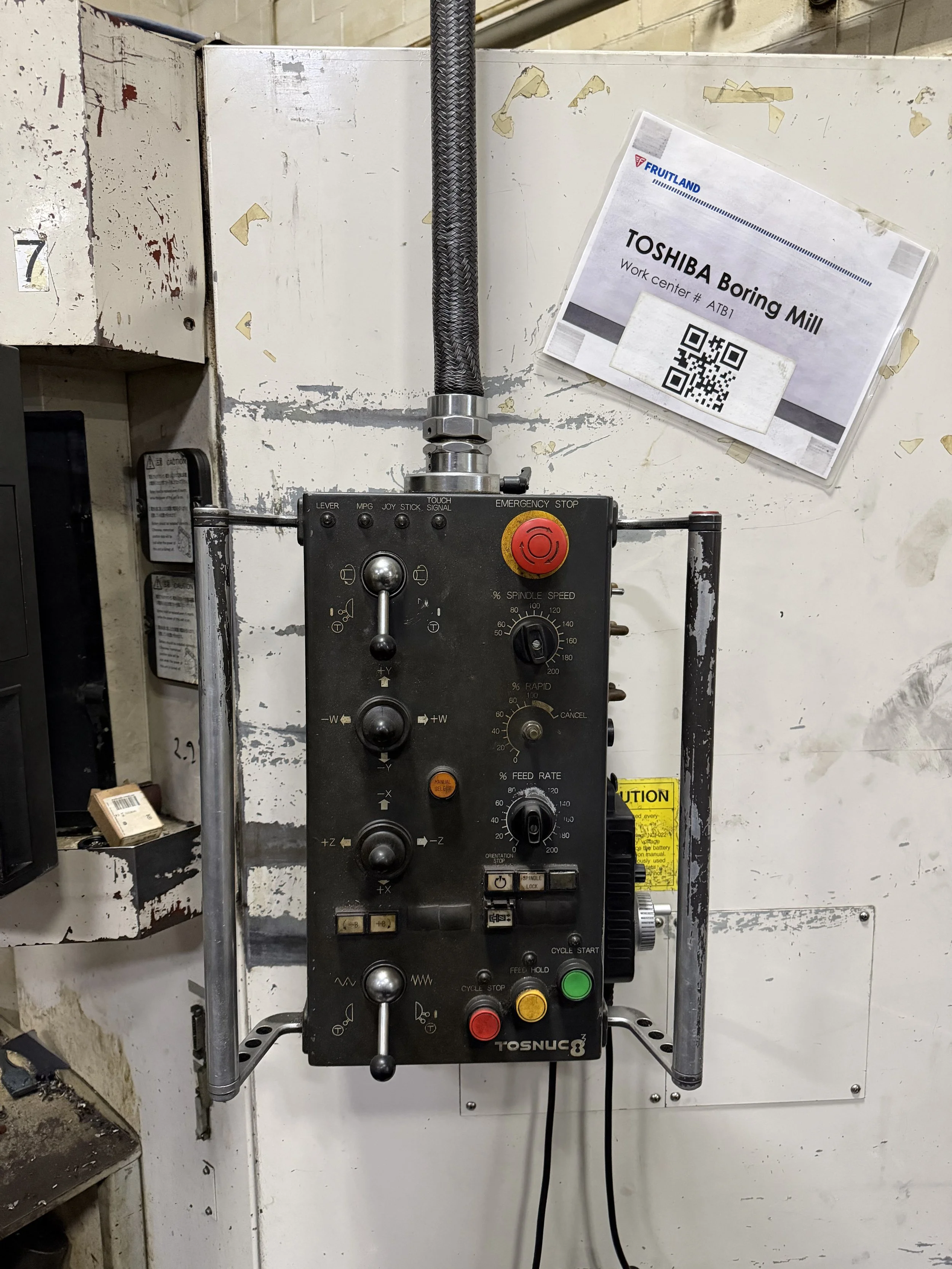

✔ Portable Hand Pendant
✔ Integrated Quill Spindle Assembly
✔ 38-Tool Automatic Tool Changer
✔ Full-Length Chip Conveyor
✔ Coolant Tank & Pump System
✔ Full Machine Guarding Enclosure
✔ Adjustable Pendant Mounting Arm
✔ Toshiba/Shibaura Servo Amplifier Rack
✔ Toshiba Axis Servo Drives
✔ Spindle Load Meter
✔ Assorted BT-50 Tooling
MACHINE OVERVIEW
The Toshiba BTD-110.R16 is a heavy-duty horizontal boring mill designed for large-part machining and high-torque applications. It is an excellent solution for:
✔ Energy and power generation components
✔ Oil & gas equipment
✔ Heavy fabrication parts
✔ Large mold & die applications
✔ Industrial machinery bases and housings
With its rigid construction, powerful spindle, full rotary table, and high-capacity tool changer, this machine provides dependable performance for demanding machining operations.
We are offering an Okuma CROWN L1060 CNC Lathe, Serial No. 10 11 1267, a compact, high-precision turning center designed for dependable bar work and production machining.
Equipped with the advanced OSP-U100L CNC Control, 12-station automatic turret, tailstock, and Hennig chip conveyor, this machine is engineered for accuracy, efficiency, and long-term reliability in demanding manufacturing environments.
MACHINE SPECIFICATIONS
Manufacturer: Okuma
Model: CROWN L1060
Machine Type Code: 762S-SB
Serial Number: 10 11 1267
Control: OSP-U100L CNC Control
Manufacturer Plate: Okuma America Corporation – Charlotte, North Carolina, USA
CAPACITY & WORK AREA
Maximum Turning Diameter: 10.6" (0.269 m)
Maximum Machining Length: 19.7" (0.500 m)
Bar Capacity: 2" (0.051 m approx.)
This configuration makes the machine ideal for precision bar-fed production and small-to-medium sized turned components.
SPINDLE & PERFORMANCE
Spindle Design: Integral high-rigidity spindle
Bar Capacity: 2" (0.051 m)
Rapid Traverse: High-speed axis rapids
Feed Rates: Fully programmable via OSP control
The CROWN L1060 is known for thermal stability, consistent repeatability, and excellent surface finish capability across steel, stainless, and aluminum materials.
TURRET & TOOLING
Turret Type: Automatic Turret
Number of Stations: 12-Station Turret
Tooling Style: Standard turning tool holders
Allows efficient multi-tool operations and minimized setup time for continuous production.
TAILSTOCK
Tailstock: Yes
Provides additional part support for longer shafts and heavier workpieces, ensuring stability and precision during machining.
ELECTRICAL (VERIFIED FROM MACHINE NAMEPLATE)
Supply Voltage: 480 / 220 V
Phase: 3 Phase
Frequency: 60 Hz
Rated Capacity: 17.2 kVA
Full Load Current: 21 A (480V) / 45 A (220V)
Largest Motor Current Rating: 50 A
Interrupt Capacity: 18 / 25 kA
Drawing No.: AE0001
CHIP MANAGEMENT SYSTEM
Chip Conveyor: Hennig Chip Conveyor Installed
Enhances chip evacuation efficiency, reduces downtime, and maintains a clean machining environment for uninterrupted production.
MACHINE IS EQUIPPED WITH
✔ OSP-U100L CNC Control
✔ 12-Station Automatic Turret
✔ 2" Bar Capacity
✔ Tailstock
✔ Hennig Chip Conveyor
✔ Coolant System
✔ Full Safety Enclosure
✔ Standard Accessories
MACHINE OVERVIEW
The Okuma CROWN L1060 is a compact, production-focused CNC lathe engineered for precision, durability, and efficiency. It is an excellent solution for:
✔ Bar-fed production work
✔ Automotive & aerospace components
✔ Medical precision parts
✔ Tight-tolerance turning applications
✔ Continuous production environments
With verified electrical specifications, robust Okuma engineering, and integrated chip management, this machine delivers dependable, high-quality performance in demanding shop environments.
This machine is fully functional, well-maintained, and available for inspection or immediate shipment.
FOR SALE: OKUMA CROWN L1060 CNC LATHE – HIGH-PRECISION PRODUCTION TURNING CENTER
We are offering an Okuma CROWN L1060 CNC Lathe, Serial No. 1836, a compact yet powerful production turning center engineered for precision, rigidity, and long-term reliability.
Equipped with the advanced OSP-U100L CNC Control, 12-station turret, 2" bar capacity, and tailstock, this machine is ideal for high-accuracy bar work and small-to-medium component production.
MACHINE SPECIFICATIONS
Manufacturer: Okuma
Model: CROWN L1060
Machine Type: CNC Turning Center
Machine Type Code: 762S-SB
Serial Number: 1836
Control: OSP-U100L CNC Control
CAPACITY & WORK AREA
Maximum Turning Diameter: 10.6" (0.269 m)
Maximum Machining Length: 19.7" (0.500 m)
Bar Capacity: 2" (0.051 m approx.)
Designed for efficient small-part production and bar-fed machining with tight tolerances and consistent repeatability.
SPINDLE & PERFORMANCE
Spindle Design: High-rigidity integral spindle
Bar Capacity: 2" (0.051 m)
Rapid Traverse: High-speed axis rapids for reduced cycle times
Cutting Feed Rate: Fully programmable via OSP control
The machine provides stable thermal performance and excellent surface finishes across various materials including alloy steel, stainless steel, and aluminum.
TURRET & TOOLING
Turret Type: Automatic Turret
Number of Stations: 12-Station Turret
Tooling Style: Standard turning tool holders
Allows efficient multi-tool machining and reduced setup time in production environments.
TAILSTOCK
Tailstock: Yes
Provides additional support for longer shafts and heavier workpieces, ensuring machining stability and precision.
ELECTRICAL (VERIFIED FROM MACHINE NAMEPLATE)
Supply Voltage: 220 / 480 V
Phase: 3 Phase
Frequency: 60 Hz
Rated Capacity: 18.6 kVA
Full Load Current: 48.9 A (220V) / 22.4 A (480V)
Largest Motor Current Rating: 50 A
Interrupt Capacity: 25 / 18 kA
Manufacturer Plate: Okuma America Corporation – Charlotte, NC, USA
MACHINE IS EQUIPPED WITH
✔ OSP-U100L CNC Control
✔ 12-Station Automatic Turret
✔ 2" Bar Capacity
✔ Tailstock
✔ Coolant System
✔ Full Safety Enclosure
✔ Standard Accessories
MACHINE OVERVIEW
The Okuma CROWN L1060 is a proven, production-ready CNC turning center designed for durability and consistent precision. Its rigid construction, advanced OSP control system, and bar capacity make it an excellent solution for:
✔ Bar-fed production work
✔ Automotive components
✔ Aerospace precision parts
✔ Medical component manufacturing
✔ Tight-tolerance turning applications
With verified electrical specifications and robust Okuma engineering, this machine delivers dependable performance in high-demand machining environments.
This machine is fully operational, well-maintained, and available for inspection or immediate shipment.
FOR SALE: OKUMA MA-40HA HORIZONTAL MACHINING CENTER (2003) – HIGH-SPEED, HIGH-PRECISION PRODUCTION HMC
We are offering a 2003 Okuma MA-40HA Horizontal Machining Center, a high-performance, production-grade HMC engineered for precision, rigidity, and long-term reliability. Designed for demanding manufacturing environments, the MA-40HA delivers exceptional accuracy, fast cycle times, and superior surface finishes.
Equipped with the advanced OSP-E100M CNC Control, high-speed 15,000 RPM spindle, pallet changer system, and 30-tool automatic tool changer, this machine is ideal for aerospace, automotive, energy, and precision component manufacturing.
MACHINE SPECIFICATIONS
Manufacturer: Okuma
Model: MA-40HA
Year: 2003
Machine Type: Horizontal Machining Center (HMC)
Control: OSP-E100M CNC Control
CAPACITY & WORK AREA
X-Axis Travel: 22.05" (0.560 m)
Y-Axis Travel: 24.01" (0.610 m)
Z-Axis Travel: 24.61" (0.625 m)
Pallet Size: 15.75" x 15.75" (0.400 m x 0.400 m)
Maximum Pallet Load: 880 lbs (399 kg)
The dual-pallet configuration increases spindle uptime and allows for reduced setup times, making it ideal for continuous production machining.
SPINDLE & PERFORMANCE
Spindle Speed: 15,000 RPM
Spindle Motor: 35 HP
Spindle Taper: CAT 40
Rapid Traverse Rate (X/Y/Z): 1,574 IPM (40 m/min approx.)
The high-speed spindle combined with rigid machine construction ensures excellent cutting performance across aluminum, steel, and alloy materials.
TOOL CHANGER
Tool Capacity: 30 ATC (Automatic Tool Changer)
The 30-station tool magazine allows for efficient multi-tool operations, reducing downtime and improving productivity in complex machining applications.
ELECTRICAL
Control System: OSP-E100M CNC Control
Voltage: Industrial Voltage (Details available upon request)
Phase: 3-Phase
Frequency: 50/60 Hz
Okuma’s proprietary OSP control is known for its stability, user-friendly interface, and advanced thermal compensation technology.
MACHINE DIMENSIONS & WEIGHT
Floor Space: 170" x 105" x 120" (4.32 m x 2.67 m x 3.05 m approx.)
Machine Weight: 25,000 lbs (11,340 kg approx.)
Heavy-duty construction provides vibration dampening and superior machining stability.
MACHINE IS EQUIPPED WITH
✔ OSP-E100M CNC Control
✔ 30-Tool Automatic Tool Changer
✔ Dual Pallet System
✔ 15,000 RPM High-Speed Spindle
✔ Coolant Thru Spindle (CTS)
✔ Chip Conveyor
✔ Probing System
✔ Full Safety Enclosure
MACHINE OVERVIEW
The Okuma MA-40HA is engineered for high-speed, high-accuracy horizontal machining. Its rigid structure, thermal stability, and high-performance spindle make it an excellent solution for:
✔ Precision aerospace components
✔ Automotive production machining
✔ Mold & die components
✔ Multi-face part machining
✔ High-volume production environments
With its powerful spindle, dual pallet changer, and industry-proven Okuma control system, this machine delivers outstanding productivity, reliability, and long-term value.
This machine is fully operational, well-maintained, and available for inspection or immediate shipment.
We are offering a Hardinge Conquest 42 CNC Turning Center, a high-accuracy, production-grade CNC lathe renowned worldwide for precision, repeatability, and superior surface finishes. This machine is equipped with a GE FANUC Series 18-T CNC control, providing reliable operation, fast processing, and industry-standard G-code programming.
The Conquest 42 is designed for high-speed, tight-tolerance turning applications and is ideal for bar work, small-to-medium parts, and continuous production environments. With a collet chuck, automatic turret, tailstock, and bar feeder, this machine is well-suited for unattended machining and high-volume output.
Manufacturer: Hardinge
Model: Conquest 42
Machine Type: CNC Turning Center
Model Code: SG-42
Control: GE FANUC Series 18-T CNC Control
Maximum Turning Diameter: (Specification available on request)
Maximum Turning Length: (Specification available on request)
Chuck Type: Collet Chuck – ideal for high-precision bar work
Tailstock: Yes – supports longer or heavier components
Turret Type: Automatic Turret
Number of Stations: (Typical Conquest 42 configuration – confirmable)
Tooling Style: Standard turning tool holders
Designed for fast tool changes and reduced cycle times in production machining.
Bar Feeder: Yes – included
Allows continuous bar-stock machining, increased productivity, and reduced operator intervention.
Rapid Traverse: FANUC-controlled high-speed rapids
Cutting Feed Rate: Programmable via FANUC control
Accuracy & Repeatability: Exceptional precision and thermal stability
Control System: GE FANUC Series 18-T
Voltage: Industrial voltage (details available on request)
Phase: 3-Phase
Frequency: 50/60 Hz
✔ GE FANUC Series 18-T CNC Control
✔ Collet Chuck
✔ Automatic Turret
✔ Tailstock
✔ Bar Feeder
✔ Coolant System
✔ Standard Safety Guards & Accessories
The Hardinge Conquest 42 is recognized for its unmatched precision, rigid construction, and long-term reliability. It is an excellent choice for:
✔ High-precision CNC turning
✔ Bar-fed production work
✔ Medical, aerospace & automotive components
✔ Tight-tolerance parts
✔ Continuous production machining
With the GE FANUC Series 18-T control, this machine delivers stable performance, easy programming, and global parts support.
This machine is fully functional, well-maintained, and available for inspection or immediate shipment.
We are offering a Cincinnati FTV 840 CNC Vertical Machining Center, a robust and reliable CNC milling machine built for high-accuracy, continuous industrial production. This machine is equipped with a powerful SIEMENS CNC control, known for precision motion control, advanced machining capabilities, and long-term reliability.
The FTV 840 features a rigid cast-iron construction, generous axis travels, and a production-grade spindle, making it suitable for precision milling, heavy cutting, fabrication, and general CNC machining. This model is well-regarded in industrial environments for its stability, accuracy, and dependable performance.
Manufacturer: Cincinnati
Model: FTV 840
Machine Type: Vertical Machining Center
Model Code: EKT
Serial Number: 7078-A00-K00093
Control: SIEMENS CNC Control
X-Axis Travel: Approx. 840 mm
Y-Axis Travel: Approx. 510 mm
Z-Axis Travel: Approx. 510 mm
(Exact travels can be confirmed upon request)
Table Size: Production-size machine table (spec available on request)
Table Load Capacity: Suitable for medium-to-heavy workpieces
Spindle Taper: (Commonly CAT 40 – confirmable)
Spindle Speed: Production-grade RPM range (spec available on request)
Spindle Motor: High-torque motor for continuous machining
Drive Type: Direct / Belt-driven depending on configuration
Designed for both precision finishing and heavy milling operations.
ATC Type: Automatic Tool Changer
Tool Capacity: (Typical FTV series configuration – confirmable)
Tool Interface: Compatible with standard industrial tooling
Supports efficient tool changes and reduced cycle times in production environments.
Rapid Traverse (X/Y/Z): High-speed CNC-controlled rapids
Cutting Feed Rate: SIEMENS-controlled variable feed
Accuracy: High positioning accuracy and repeatability
Control System: SIEMENS CNC
Voltage: Industrial voltage (details available on request)
Phase: 3-Phase
Frequency: 50/60 Hz
Approx. Weight: Heavy-duty industrial machine (exact weight available on request)
Overall Dimensions: Provided upon request
✔ SIEMENS CNC Control
✔ Vertical Machining Configuration
✔ Automatic Tool Changer
✔ Rigid Cast-Iron Construction
✔ Coolant System
✔ Full Enclosure (if applicable)
✔ Standard Safety Guards & Accessories
The Cincinnati FTV 840 is known for its strong construction, smooth axis motion, and reliable machining performance. It is an excellent choice for:
✔ Precision CNC milling
✔ Production machining
✔ Fabrication & tool-room work
✔ Industrial component manufacturing
✔ Steel, alloy, and cast-iron machining
The SIEMENS CNC control delivers advanced control functionality, stable operation, and excellent motion accuracy, making this machine ideal for demanding shop-floor environments.
This machine is fully functional, well-maintained, and available for inspection or immediate shipment.
We are offering an Okuma & Howa ACT-3 CNC Turning Center, a solid and dependable CNC lathe built with Japanese engineering precision and designed for consistent, accurate production machining.
This machine is equipped with a proven FANUC CNC control and is ideal for general turning, shaft work, batch production, and industrial machining applications.
The ACT-3 features a rigid machine structure, turret tool system, and tailstock support, making it suitable for both short and long workpieces. With a chip conveyor for efficient chip removal and standard workholding included, this machine is ready for shop-floor production.
Manufacturer: Okuma & Howa
Model / Type: ACT-3
Machine Number: 09257
Control: FANUC CNC Control
Maximum Turning Diameter: (Specification available on request)
Maximum Turning Length: (Specification available on request)
Tailstock: Yes – supports long or heavy workpieces
Chuck: 3-Jaw Chuck
Turret Type: Automatic Turret
Number of Stations: (Typical ACT-3 configuration – confirmable)
Tooling Style: Standard turning tool holders
Designed for efficient tool changes and continuous production cycles.
Rapid Traverse: FANUC-controlled (specs vary by configuration)
Cutting Feed Rate: Programmable via FANUC control
Accuracy & Repeatability: High reliability for production turning
Transformer: JVC Transformer
Voltage: Shop-ready (exact electrical plate details available on request)
Phase: 3-Phase
Frequency: 50/60 Hz
Chip Conveyor: Yes – included
Ensures clean operation and uninterrupted machining during extended runs.
✔ FANUC CNC Control
✔ Automatic Turret
✔ Tailstock
✔ 3-Jaw Chuck
✔ Chip Conveyor
✔ JVC Transformer
✔ Standard Guards & Safety Features
The Okuma & Howa ACT-3 is known for its durability, stable cutting performance, and long service life. It is an excellent choice for:
✔ General CNC turning
✔ Production machining
✔ Shaft and cylindrical components
✔ Steel, alloy, and cast-iron parts
✔ Job shops and industrial manufacturing
With its FANUC control, the machine offers easy programming, dependable operation, and global parts support.
This machine is fully functional, well-maintained, and available for inspection or immediate shipment.
We are offering a 2005 Mazak QTN-250 CNC Turning Center, a versatile, production-ready CNC lathe equipped with reliable Mazatrol Nexus 640T CNC control. This machine is designed for precision turning, batch production, and complex part machining with a robust 12-station turret and substantial work envelope.
Built for industrial turning applications, the QTN-250 is ideal for general turning, light milling/drilling on the turret, fabrication, and continuous production work manufacturing shafts, flanges, housings, and more.
Manufacturer: Mazak
Model: QTN-250
Year: 2005
Serial Number: Confirmable on request
Control: Mazatrol Nexus 640T CNC Control
Swing Over Bed: 26.5" (Approx. 673 mm)
Max Turning / Machining Diameter: 14.75" (Approx. 375 mm)
X-Axis Travel: 9.05" (Approx. 230 mm)
Z-Axis Travel: 22.63" (Approx. 575 mm)
Max Turning / Cutting Length: 19.9" (Approx. 505 mm)
Bar Capacity / Spindle Bore: ~3.03" (Approx. 77 mm)
Chuck Size: 10" (Approx. 254 mm)
Spindle Nose: A2-8
Spindle Speed: Up to 4,000 RPM
Spindle Motor: ~35 HP (26 kW) main spindle
Spindle Type: Hydraulic 3-jaw chuck mounted
(This provides strong torque for heavy turning operations)
Turret Capacity: 12 Stations
Tool Style: Square tool holders (live tooling optional/configurable)
Tool Change Style: Auto-indexing turret
Live Tool Capability: Available on some configurations (confirmable)
Rapid Traverse (X/Z): Approx. 1,181 IPM (30 m/min)
Cutting Feed Range: Mazatrol-controlled variable feed
Positioning & Accuracy: High precision via Nexus CNC control suite
Voltage: Typically 220/480V
Phase: 3-Phase
Frequency: 50/60 Hz
(Exact electrical plate details available on request)
Approx. Weight: ~11,500 lb (Approx. 5,200 kg)
Overall Footprint: ~115" × 70" × 72" (Approx. 2,920 × 1,780 × 1,830 mm)
(Exact dimensions and shipping weight can be provided on request)
Mazatrol Nexus 640T CNC Control
12-Station Auto-Indexing Turret
10" Hydraulic Chuck
Tailstock Support
Chip Conveyor (side disposal)
Bar Feeder Interface (as equipped)
Flood Coolant System
Standard Tool Holders & Manual Files (confirmable)
The Mazak QTN-250 CNC Turning Center is a rigid, production-capable lathe known for its reliable Mazatrol control, versatile turret, and strong mainspeed performance — making it ideal for:
✔ Medium-batch turning & production runs
✔ Complex shaft and feature machining
✔ Shaft, flange & housing manufacturing
✔ Precision engineering and high repeatability work
With Mazatrol Nexus 640T control, this lathe offers stable operation, easy programming, and excellent service support worldwide — ideal for machine shops, OEM production, and contract manufacturers.
We are offering a Leadwell MCV-1500ER Vertical Machining Center, a reliable, rigid, and production-grade CNC milling machine equipped with the robust FANUC 0-M CNC control.
This machine is designed for precision milling, heavy cuts, mold work, fabrication, tool-room operations, and industrial machining.
The MCV-1500ER features a large 66.75" × 25.75" table, long X-axis travel, a powerful CAT-50 spindle taper for heavy-duty cutting, and a 30-tool automatic tool changer, making it suitable for large components and continuous production environments.
Manufacturer: Leadwell
Model: MCV-1500ER
Serial Number: N/A
Control: FANUC 0-M CNC Control
Table Size: 66.75” × 25.75”
(Approx. 1695 mm × 654 mm)
X-Axis Travel: 59” (Approx. 1500 mm)
Y-Axis Travel: 39” (Approx. 990 mm)
Z-Axis Travel: Varies by configuration (spec available on request)
Table Load Capacity: Heavy-duty machine table suitable for large workpieces (spec available on request)
Spindle Taper: CAT 50 (High-rigidity, heavy milling capability)
Spindle Speed: Typically up to 6,000 RPM (confirmable if needed)
Spindle Motor: Heavy-duty motor suitable for demanding cuts
Drive: Belt / Gear-driven depending on build year (confirmable)
ATC Capacity: 30 Tools
Tool Type: CAT-50
Tool Change Style: Carousel / Arm (depending on configuration)
Rapid Traverse (X/Y/Z): Typically 20–24 m/min (varies by configuration)
Cutting Feed Rate: Fanuc-controlled variable feed
Positioning Accuracy: High accuracy with FANUC 0-M control
Voltage: 220/480V
Phase: 3-Phase
Frequency: 50/60 Hz
(Exact electrical plate details available on request)
Approx. Weight: Typically 18,000–22,000 lbs (8,200–10,000 kg)
(Varies depending on options; can verify if needed)
Overall Dimensions: Provided upon request
FANUC 0-M CNC Control
30-Tool Automatic Tool Changer
CAT-50 Spindle Taper
Large 66.75” × 25.75” Table
Full Enclosure (if applicable)
Coolant System
Chip Auger / Chip Conveyor (optional depending on machine)
Worklight, Handwheels, and Standard Accessories
The Leadwell MCV-1500ER is known for its rigid construction, large working envelope, and ability to take heavy cuts with its CAT-50 taper.
This model is ideal for:
✔ Mold & die making
✔ Precision machining
✔ Fabrication & tool-room work
✔ Industrial part production
✔ Large plate machining
✔ Steel, alloy, and cast-iron jobs
FANUC 0-M control ensures reliability, easy programming, stable operation, and global spare-parts availability.
This machine is clean, fully functional, and ready for inspection or immediate shipment.
We are offering a high-performance OKUMA LB45II CNC Turning Center, engineered for precision machining, stability, and heavy-duty production.
Built in Japan, this model features a rigid flatbed structure, powerful spindle drive, and the reliable OSP-U100L CNC controller, making it ideal for large workpieces, shafts, rollers, and long components requiring tight tolerances and consistent surface finish.
Manufacturer: OKUMA Corporation
Model: LB45II
Serial Number: 0264
Control: OKUMA OSP-U100L CNC Control
Origin: Japan
Maximum Swing Over Bed: 35.4 in (≈ 900 mm)
Maximum Turning Diameter: 26 in (≈ 660 mm)
Maximum Distance Between Centers: 78 in (≈ 1.98 meters)
Bed Type: Heavy-Duty Flatbed
Spindle Bore (Bar Capacity): 4.13 in (≈ 105 mm)
Spindle Nose: A2-11
Maximum Spindle Speed: 2,000 RPM
Main Motor Power: Approx. 40 HP
Voltage: 220/480V
Phase: 3-Phase
Frequency: 60 Hz
Rated Capacity: 51.6 kVA
Full Load Current: 135.3 / 62 A
Largest Motor Rating: 212 A
Interrupt Capacity: 30 / 75 kA
Stations: 12-Position Bi-Directional Turret
Type: Heavy-Duty Servo Driven
Rapid Traverse (X-Axis): 472 IPM (≈ 12 m/min)
Rapid Traverse (Z-Axis): 472 IPM (≈ 12 m/min)
Type: Programmable Heavy-Duty Tailstock
Quill Travel: Long-stroke hydraulic quill for extended part support
Approx. Weight: 27,000 lbs (≈ 12,250 kg)
Overall Dimensions: Provided upon request
OKUMA OSP-U100L CNC Control
3-Jaw Hydraulic Chuck
Heavy-Duty Programmable Tailstock
Hydraulic Steady Rest
Chip Conveyor
TRION AIR BOSS Mist Collector
All Available Manuals
480V, 3-Phase Power Configuration
The OKUMA LB45II is a proven, heavy-duty turning center built for demanding machining environments.
With its massive cast-iron structure, rigid headstock, and precision flatbed, this machine offers outstanding stability for large-diameter and long-length workpieces.
The OSP-U100L control provides:
✔ Reliable operation
✔ Simplified programming
✔ Accurate diagnostics
✔ Consistent machining performance
With its hydraulic steady rest and programmable tailstock, the machine ensures maximum rigidity and accuracy during heavy turning operations.
This machine is in excellent working condition, clean, inspected, and ready for immediate shipment.
Featuring a heavy-duty slant bed design and equipped with the reliable FANUC 0T CNC Control. This machine is well-suited for high-volume and large-part turning applications.
MACHINE SPECIFICATIONS
Manufacturer: Leadwell
Model: LTC-30P
Control System: FANUC 0T CNC Control
CAPACITY
Maximum Swing Over Bed: 25.5 in. (Approx. 650 mm)
Maximum Turning Diameter: 18.9 in. (Approx. 480 mm)
Maximum Turning Length: Up to 55 in. / 1400 mm (Long Bed Models)
Distance Between Centers: Up to 62 in. (Contact for specific bed length)
SPINDLE
Spindle Bore (Bar Capacity): 3.7 in. (94 mm) - Note: Bar capacity may vary, please confirm
Spindle Nose: A2-8 (Typical)
Maximum Spindle Speed: 2,500 - 3,000 RPM
Main Motor Power: 35 HP (Approx.)
TURRET
Tool Stations: 12 Position Bi-Directional Turret
FEED RATES
Rapid Traverse Rate (X-Axis): 393 IPM (Approx. 10 m/min)
Rapid Traverse Rate (Z-Axis): 472 IPM (Approx. 12 m/min)
MACHINE DIMENSIONS AND WEIGHT
Approximate Machine Weight: 15,640 lbs (7,094 kg) -
EQUIPPED WITH
* CNC Control: FANUC 0T CNC Control
* Chuck: 3-JAW HYDRAULIC CHUCK
* Power: 575V Electrical Configuration (3 Phase)
* Tailstock: Heavy-Duty Tailstock
* Chip Management: Chip Conveyor
* Tooling: Basic Turret Tooling
* Documentation: All Available Manuals
MACHINE OVERVIEW
The Leadwell LTC-30P is a highly rigid CNC turning center built on a 45° slant bed cast iron base, ensuring superior stability and efficient chip evacuation. The combination of a powerful spindle, the robust FANUC 0T control, and high rapid traverse rates makes this machine an excellent workhorse for both heavy material removal and accurate, high-production turning of long shafts and large-diameter parts. It is currently available for inspection.
⸻
MACHINE SPECIFICATIONS
Manufacturer: Dainichi
Model: MG 65 X 140
Year of Manufacture: 1999
Serial Number: 29172
⸻
CONTROL SYSTEM
FANUC Series 18-T CNC Control
⸻
CAPACITY
Swing Over Bed: 25.5 in. (650 mm)
Distance Between Centers: 55 in. (1400 mm)
⸻
SPINDLE
Spindle Bore: 3.3 in. (85 mm)
Spindle Nose: A1-11
Spindle Speed Range: 1 - 1,800 RPM
Main Motor Power: 20 HP
⸻
TURRET
Turret Type/Stations: 6 Position Universal Turret
⸻
FEED RATES
Rapid Traverse Rate: 6 m/min
⸻
EQUIPPED WITH
* Hydraulic Chuck: KITAGAWA B18A11 3-JAW HYDRAULIC CHUCK
* Work Support: Heavy-Duty Steady Rest (11.8 in. capacity)
* Chip Management: ENOMOTO Chip Conveyor (Model: MG65 (75)-150)
* Documentation: Complete set of Maintenance Manuals (including FANUC Series 18/160/180-MODEL C)
* Tooling: Included Tool Holders
* Electrical Requirement: 480 V, 3 PH, 60 HZ
⸻
MACHINE OVERVIEW
The Dainichi MG 65 X 140 is a heavy-duty flat-bed CNC lathe renowned for its solid construction and stability, making it perfectly suited for large-diameter and shaft work. Built on a massive casting, it ensures maximum rigidity and dampens vibration for high-precision turning results. Equipped with a powerful main motor and a reliable FANUC 18-T control, this machine delivers the torque and control required for demanding production environments. It is currently available for inspection.
Manufacturer: Nishida Machine Co., Ltd.
Model: Q-1000V
Serial Number: Q01070009
Date of Manufacture: January 2007
Place of Manufacture: Osaka, Japan
⸻
SPECIFICATIONS
Axis Travels
X-Axis Travel: 1,067 mm (42”)
Y-Axis Travel: 610 mm (24”)
Z-Axis Travel: 650 mm (25.6”)
Table
Table Size (L × W): 1,397 × 599 mm (55” × 23.6”)
Table Top to Spindle Nose: 160 – 810 mm (6.3” – 31.9”)
Maximum Table Load: 998 kg (2,200 lbs)
Spindle
Spindle Taper: CAT 50
Spindle Speed Range: 50 – 6,000 rpm
Spindle Motor Power: 25 HP (18.6 kW)
Power Supply: 200 V, 115 A, 60 Hz, 3 Phase
Total Power Rating: 32 kW
Coolant Through Spindle (CTS): Standard
Feed Rates
Rapid Traverse (X/Y Axes): 787 IPM (20 m/min)
Rapid Traverse (Z Axis): 591 IPM (15 m/min)
Cutting Feed Rate: 0.1 – 393 IPM (2.5 – 10 m/min)
Automatic Tool Changer
Tool Capacity: 32 Tools (Side-Mount Type)
Tool Taper: CAT 50
Tool Change Time: Approx. 2.8 seconds
Maximum Tool Weight: 6.8 kg (15 lbs)
⸻
MACHINE DIMENSIONS AND WEIGHT
Overall Dimensions (W × D × H): 3,810 × 2,540 × 2,740 mm (150” × 100” × 108”)
Approximate Machine Weight: 8,618 kg (19,000 lbs)
⸻
EQUIPPED WITH
• FANUC FS18i-MA CNC Control
• Coolant Through Spindle System (CTS)
• 32-Station Automatic Tool Changer (SMTC)
• Rigid Tapping Function
• Spindle Chiller Unit
• Lift-Up Chip Conveyor
• Full Coolant Enclosure and Chip Guarding
• Pendant-Mounted CNC Control Panel
• Work Light and Air Blast System
• Machine Documentation and Operator Manuals
⸻
MACHINE OVERVIEW
The Nishida Q-1000V Vertical Machining Centre is a precision-engineered, heavy-duty CNC machining platform designed for superior rigidity, reliability, and accuracy.
Built on a robust cast-iron base and column, it offers excellent vibration damping and thermal stability for consistent machining precision.
Equipped with a CAT 50 spindle, 25 HP motor, and Fanuc FS18i-MA CNC control, this model delivers strong torque performance and smooth motion control for demanding production and toolroom applications.
The integration of through-spindle coolant, rigid tapping, and a high-capacity automatic tool changer makes it ideal for a wide range of precision machining operations, including mold, die, and component manufacturing.
No results match your search. Try removing a few filters.
